产品概述：

本新型环保复合绝缘环网柜开关，其相对固体柜来说有少用固体绝缘件的优点，相对SF6充气柜来说有不充SF6气体的优点，相对空绝缘柜来说有体积减小，有效利用城市空间资源的优点。综上，即减少了难以降解的固体绝缘材料又抑制了温室效应气体SF6的排放，同时结构简单体积小、组合灵活。

This new type of environmental protection composite insulated ring cabinet switch, compared with the solid cabinet, has the advantage of less solid insulation, compared with SF6 inflatable cabinet has the advantage of not filling SF6 gas, compared with air insulated cabinet, it has the advantages of reducing volume and effectively using urban space resources. In summary, it not only reduces the solid insulation materials that are difficult to degrade, but also inhibits the emission of greenhouse gas SF6, while the structure is simple, small and flexible.

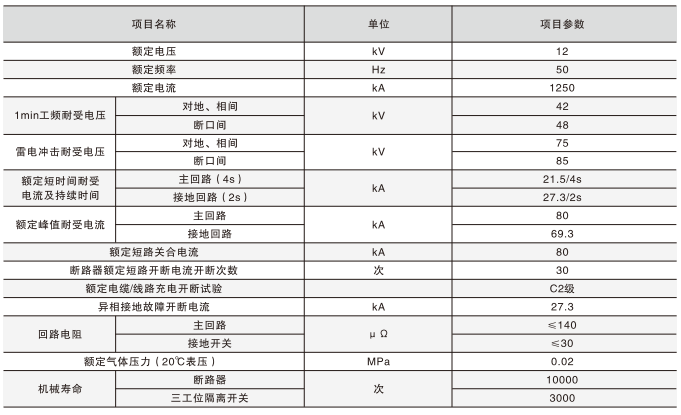

技术参数：
